Product Description :

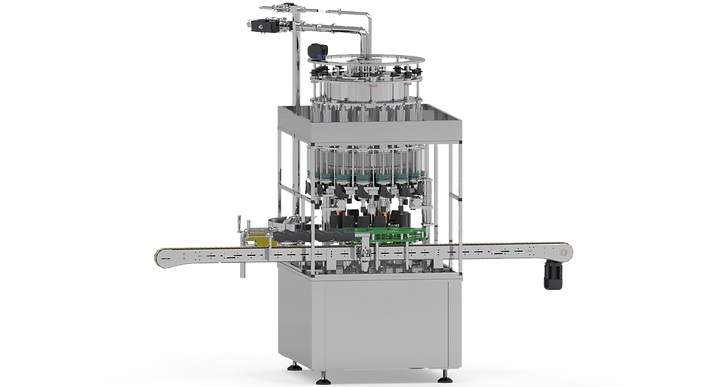

Rotary Fill-To-Level(RFL)
The Rotary Fill-To-Level machine is an automatic filling machine typically used for applications where the fill level of each container need to be visually identical.
The machine is available in six frame sizes and incorporates from 6 to 90 filling nozzles. It easily handles the containers ranging from 15ml to 9.5L. Depending on the number of nozzles and bottle size, this machine can fill 20-500 containers per minute.
The RFL may be configured as a pressure,gravity vacuum, or pressure/gravity combination system, and can be readily accommodated a wide range of container sizes and product viscosities.
Pressure & gravity filling systems
Features an exclusive HUILIDE manifold design with shut off disc that allows the RFL to fill various viscous lotions,shampoo,foaming liquids and detergents without risk of splash-back and uneven fill levels resulting from withdrawing nozzles out of pressurized plastic containers.
Vacuum filling system
Our high efficiency vacuum system is designed fill rigid walled containers with low viscosity products, with up to 40% less vacuum requirements than needed for conventional systems.
The manifold eliminates nozzles crimping during operation and nozzles draining when the filler is shut down. All product overflow is drawn back to the manifold and through a trap jar,returned to the tank for re-use.
Standard Features
Container control with synchronized conveyor drive
Smooth container handling provided by large diameter UHMVV intake and discharge stars
Top gear drive and base frame shielded in stainless steel
Centralized manual lubrication system
Safety barrier guarding within stainless steel frame
No container,no fill
Machine jam protection provided by electronic shear pin
Electric variable speed machine drive
Change parts retain timing through keyed quick-changed shafts
No tool changeover
Accurate filling of plastic containers with manifold shut-off disc
Readout in containers per minute
Container jam protection with clutch on spiral
Options & accessories
Contact parts can be made in PVC, Hastelloy or Titanium to meet product compatibility
Centering devices for unstable containers or sprinkler top bottles
Synchronous drive for high speed operation
Flush-in-place
Auto lube
Quick change nozzles
Sanitary nozzles
Infeed and discharge star clutches
Applications
Deodorant,honey,shampoo,mayonnaise,lotion,cream,spread,BBQ sauce,gel,liquid soap,vinegar & oil,hot sauce,salsa,baby food,ketchup,salad dressing,horse radish,jam,relish,peanut butter,corn syrup,chemicals,oil,fabric softener,paint
