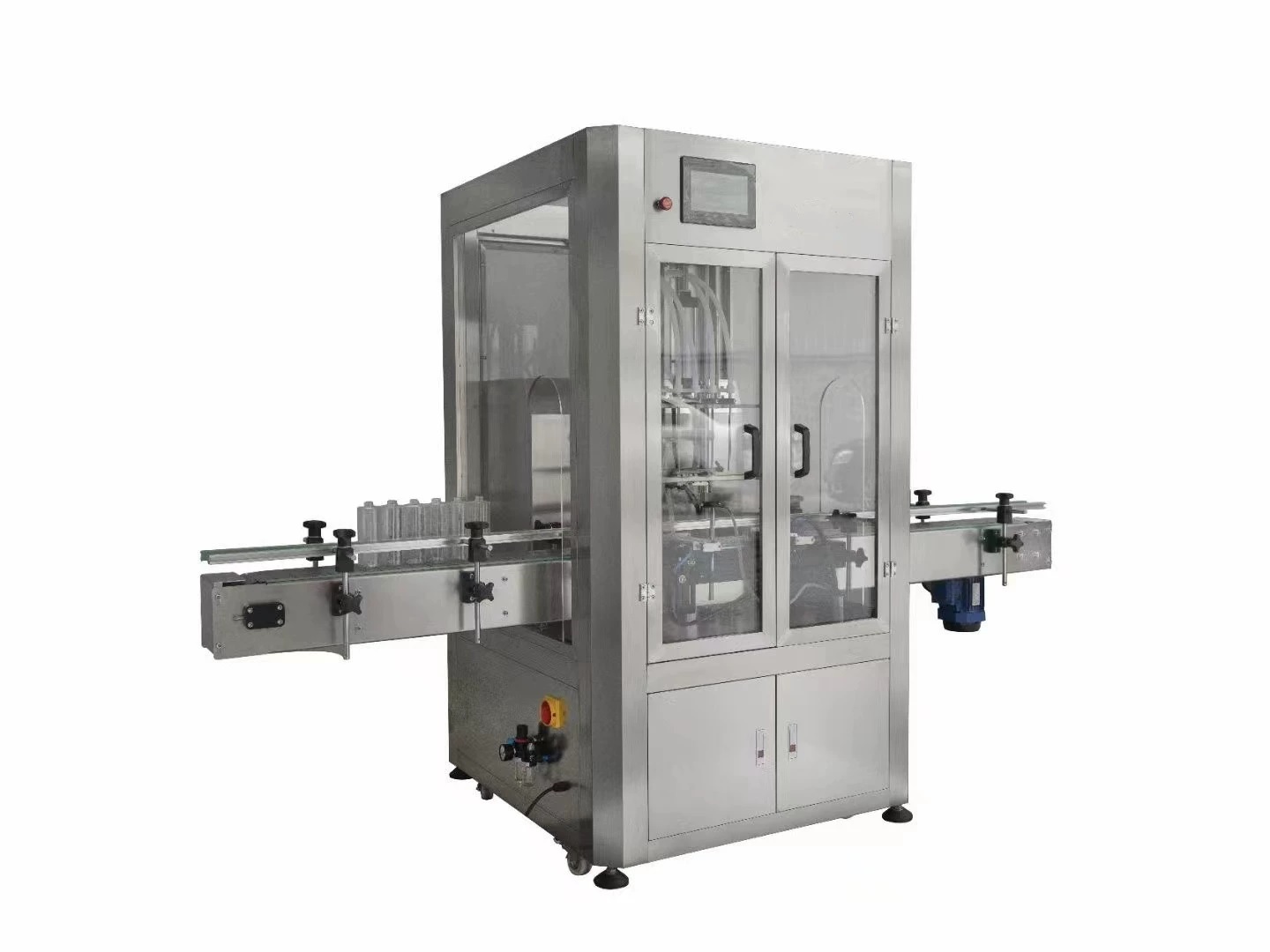

Inline Piston Filling Machine

The HUILIDE inline piston filler(IPF) is ideally suited to fill a diverse range of a liquid products such as food & beverage,cosmetics,personal care products and chemicals.The IPF is ruggedly designed,yet precision built for long trouble-free operation.
The volumetric piston filler will fill product viscosity from 1 to 100,000 centipoise,with accuracies of +/-0.05% of fill volume with proper nozzle and cylinder sizing. Models are available with 2,4 or 6 spouts depending on speed requirements. Speed output up to 60 containers per minute can be achieved.
Filling principle
The fill nozzles are attached to a fully automatic,air-operated raising/lowering spout bar. The rate of the bar movement is controlled by flow-control valves. The feature pneumatically lowers the nozzles to determined positions,then the nozzles and product valves open. The pistons dispense the required volume of product through the valve and nozzles.The nozzles and product valve close, and the spout bar and pistons return to the “home” position.
Vertical piston design
The advantage of using vertical piston design is that the IPF has a smaller footprint,taking up less floor space. Product changeover and clean up are easily accomplished-the product valves,cylinders and pistons are located just inside the rear guard door,allowing the operator easy access.
Standard features
Vertical piston design
Individual piston adjustment
316 stainless steel contact part
PVC product tube
Starwheel container indexing
Stainless steel top cover
No container no fill
Set of fill nozzles
Operator interface
Safety guarding
