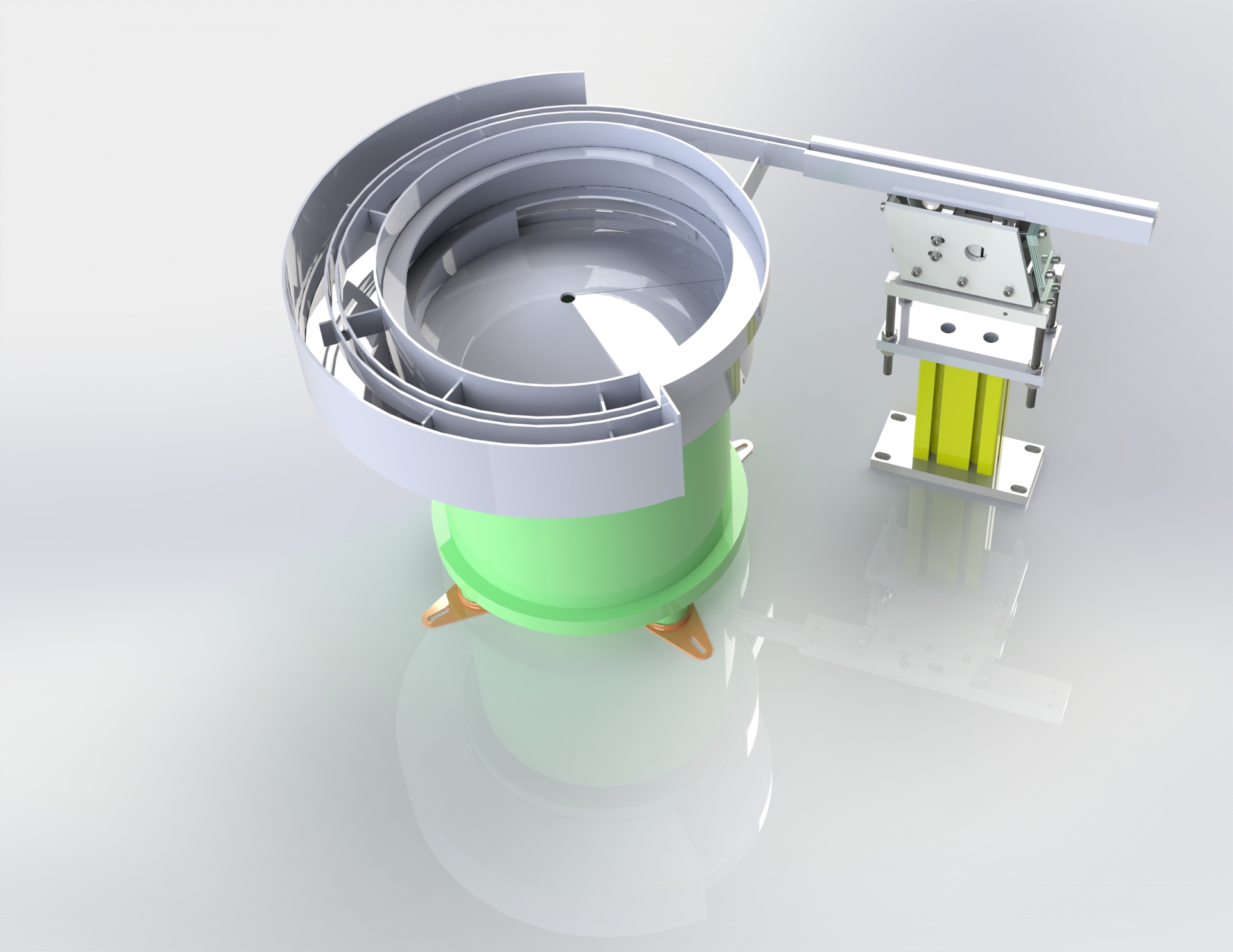

What Is a Digital Vibratory Bowl Feeder?
A digital vibratory bowl feeder leverages digital design and simulation technology to validate part feeding performance before physical manufacturing. Instead of building physical prototypes upfront, we simulate and verify all feeding performance metrics during the design phase. Reliability of the feeding solution can be predicted and confirmed at the early project stage, ensuring consistency and reproducibility for subsequent mass production.
How Huilide Develops Digital Vibratory Bowl Feeders
Huilide has implemented digital development for multiple custom vibratory bowls, mainly for custom bowl tops and feeding tracks. The workflow follows digital simulation first, then physical production via CNC machining or 3D printing. Custom bowl design is finalized by combining simulation calculations and material characteristic evaluation.
Core Technology: Multi-body Motion Simulation + AI Deep Learning We adopt multi-body motion simulation and AI deep learning algorithms to calculate and output optimal mechanical parameters. Part motion in the simulated environment closely matches real on-site operating behaviour. This greatly improves the predictability of feeder performance, enhances feeding stability, cuts prototype rework costs and shortens custom delivery lead times.
Our digital technology applies not only to new feeding systems but also retrofits partial structures of conventional feeders to boost overall stability and reproducibility.
Core Benefits
✅ Pre-production simulation verification
✅ Reusable digital models
✅ Simulation runs alongside design to accelerate development
✅ Two manufacturing options: CNC machining or 3D printing
✅ High consistency between finished hardware and digital models
CNC Machined Digital Vibratory Bowl Feeders
Our CNC machined digital bowl feeders are manufactured from validated digital models using CNC machining. Advanced CAD/CAM technology runs through the whole development and production process. Aluminium or engineered plastic are commonly selected. They are ideal for feeding small and micro components, supporting repeat mass production while retaining all technical advantages from digital simulation.
3D Printed Digital Vibratory Bowl Feeders
Built upon finalized digital models, our 3D printed vibratory bowls adopt rapid additive manufacturing for fast customization with reusable digital files. This flexible manufacturing method suits frequent part shape & size changeovers, such as electronic components and various micro precision parts.
Digital Development Workflow
- Project Requirement Analysis: Collect part CAD data, discharge direction, feeding rate, site conditions and feeding mode.
- Preliminary Proposal & Feasibility Study: Select feeding method, run system simulation and validate solution feasibility.
- Structural Design & Optimization: Bowl & track design, selection of sorting mechanisms and overall system layout.
- Digital Solution Validation: Confirm bowl and track geometry, tune simulation and verify key indicators including feeding speed.
- Digital Motion Simulation: Validate vibration and drive performance, tune frequency and spring parameters, optimize overall machine settings.
- Production & Commissioning: CNC / 3D print bowl and tracks, machine assembly. Minimize on-site commissioning hours and identify potential risks in advance.
- Operation & After-sales: Machines can be replicated for additional lines; spare parts replacement is simple, digital files can be reused repeatedly.
Why Choose Huilide Digital Vibratory Bowl Feeders?
- Pre-production Digital Validation Virtual simulation and testing before manufacturing reduces reliance on physical prototypes, lowers project risks and guarantees expected performance out of the box.
- Reproducible & Consistent Performance CNC milling and 3D printed tooling deliver highly repeatable bowl designs. Mass batches maintain uniform quality, geometry and feeding performance. Identical feeding systems can be reliably duplicated across multiple production lines or factories using digital data.
- AI Optimized Sorting Geometry AI and 3D geometric deep learning optimize sorting tracks and tooling to maximize feeding efficiency and stability. Complex irregular geometries which are difficult to achieve with traditional methods can be precisely calculated and manufactured.
- High-precision Manufacturing Advanced CNC and additive manufacturing provide: • Tight tolerance control with high machining accuracy • Smooth and uniform surface finish • High alignment between digital design and physical hardware High precision ensures stable feeding and repeatable motion.
- High Flexibility for Multiple Part Specifications Quick adaptation to different workpieces and sizes. Suitable for: • Multiple variants within one product series • Product design iteration • Future product modification Digital tooling data simplifies changeover and reduces secondary development workload.
- High Performance & Reliability Combining digital verification with Huilide’s proven mechanical construction, digital bowl feeders deliver stable feeding, suitable for demanding applications requiring high precision, high throughput and long continuous running.
- Shorter Lead Time & Better Cost Efficiency Digital design & manufacturing reduce development cycles, material waste and repeated prototype rework. Delivery time is shortened and overall cost optimized, especially advantageous for complex custom vibratory bowls.
Huilide Digital Feeding System Portfolio
The digital vibratory bowl feeder acts as the core unit of a full digital feeding system. Our complete feeding equipment range can be integrated into the digital development framework:
- Vibratory bowl feeders
- Linear feeders
- Step feeders
- Centrifugal feeders
- Integrated feeding systems
Proven mechanical design plus digital simulation helps customers reduce project risks, shorten on-site debugging time, improve cross-line equipment consistency and secure stable full-lifecycle operation. Huilide supplies ready-to-run, reliable automated feeding solutions from standalone bowl feeders to complete feeding & handling lines.
Applications
Sorting & automatic feeding for electronic components, micro fasteners, precision plastic parts, medical micro-components and packaging fittings. Fit for automated assembly, vision inspection, filling and packaging production lines. Especially recommended for complex-shaped workpieces where conventional vibratory bowls require repeated physical trials and struggle with stable feeding.
