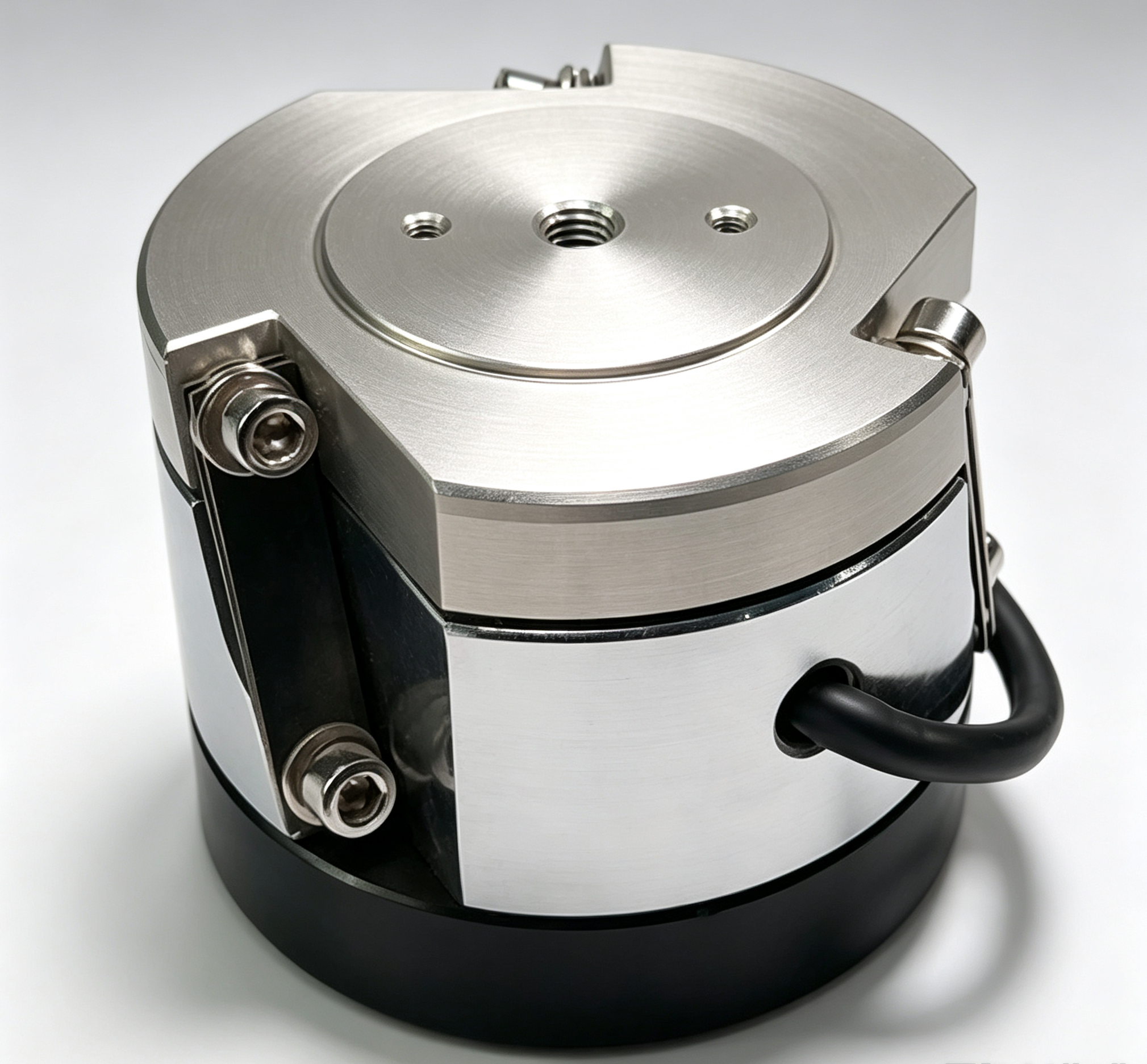

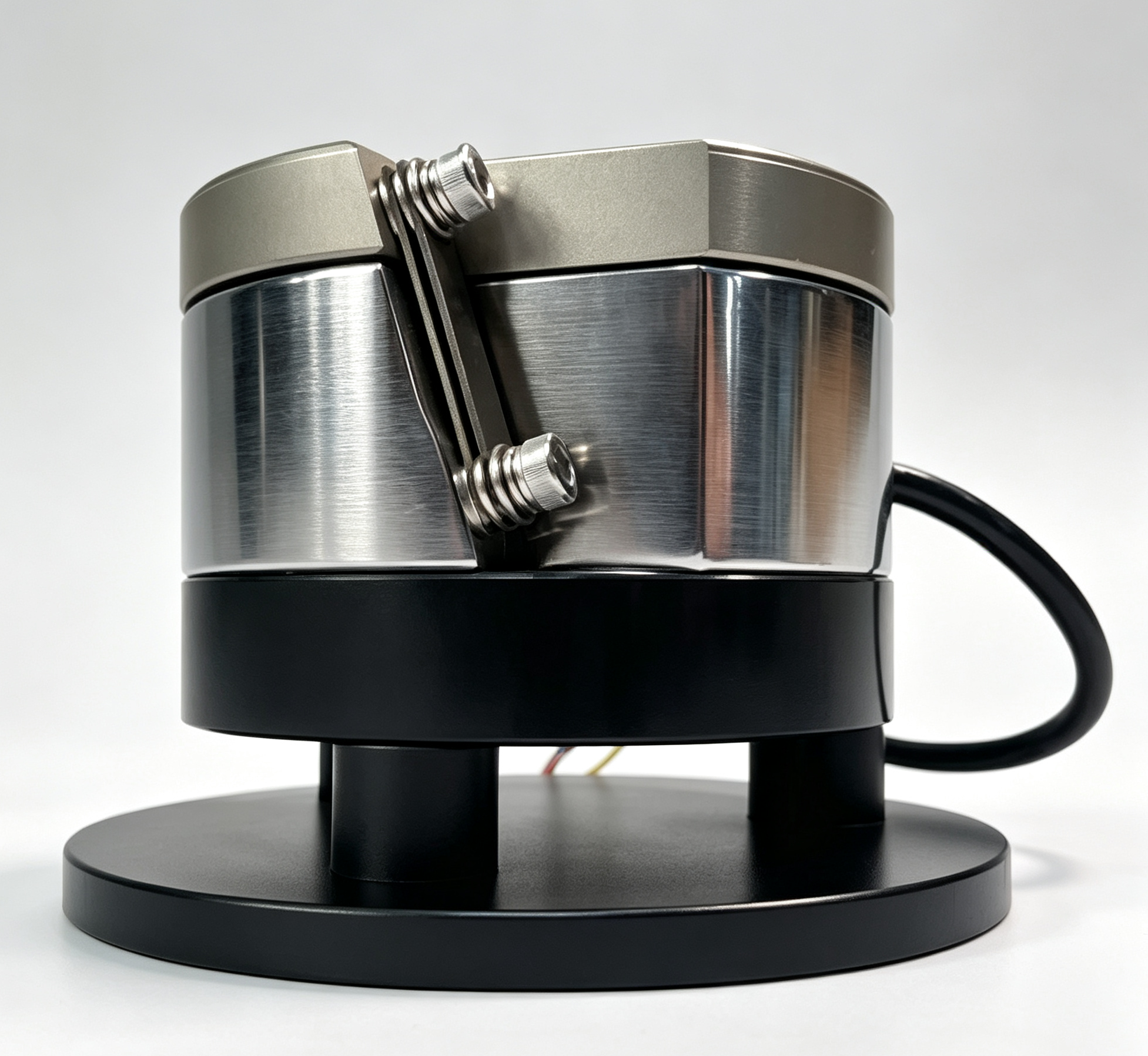

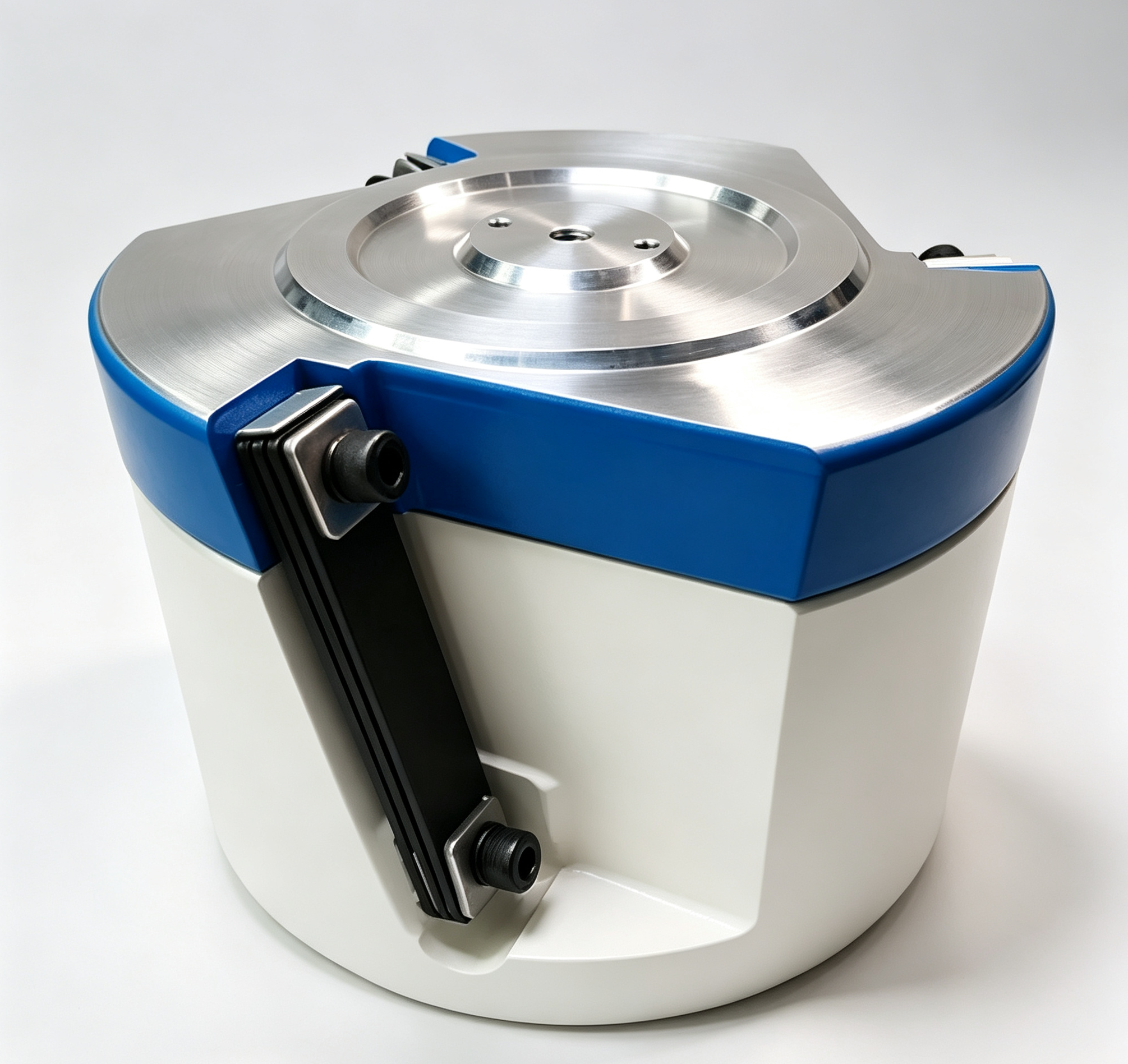

Electromagnetic Precision Vibratory Bowl Drive | Huilide Automation
Our electromagnetic precision vibratory bowl drive delivers stable and uniform vibration for your vibratory bowl feeders. Adopting high-quality electromagnetic coils and leaf spring sets, it ensures low amplitude, high-frequency steady operation for delicate and small components.
Suitable for bowls ranging from 80mm to 1200mm diameter. We provide standard, customized versions with CE, UL/CSA certifications available. The drive runs quietly with minimal heat generation and low failure rate, requiring little routine maintenance.
It matches perfectly with our bowl bodies, controllers and linear feeders. Widely used for feeding hardware fasteners, electronic parts, medical components, cosmetic fittings and other precision workpieces in automated assembly lines.
Key Features
✅ Precise Electromagnetic Driving: Stable vibration output for small and fragile parts, avoiding workpiece jamming or scratching.
✅ Wide Bowl Size Adaptability: Compatible with vibratory bowls of 80 mm ~ 1200 mm.
✅ Low Noise & Low Heat: Optimized magnetic structure reduces operating noise and heat buildup during long continuous runs.
✅ Long Service Life: Heavy-duty leaf spring assembly, robust structure, simple maintenance.
✅ Certification Available: CE, UL/CSA certifications can be supplied to meet global market requirements.
✅ Easy Matching: Works seamlessly with Huilide bowl bodies, vibration controllers and linear feeders.
Applications
Automotive, electronics, medical devices, hardware & fastener, cosmetics and plastic component automated feeding systems.

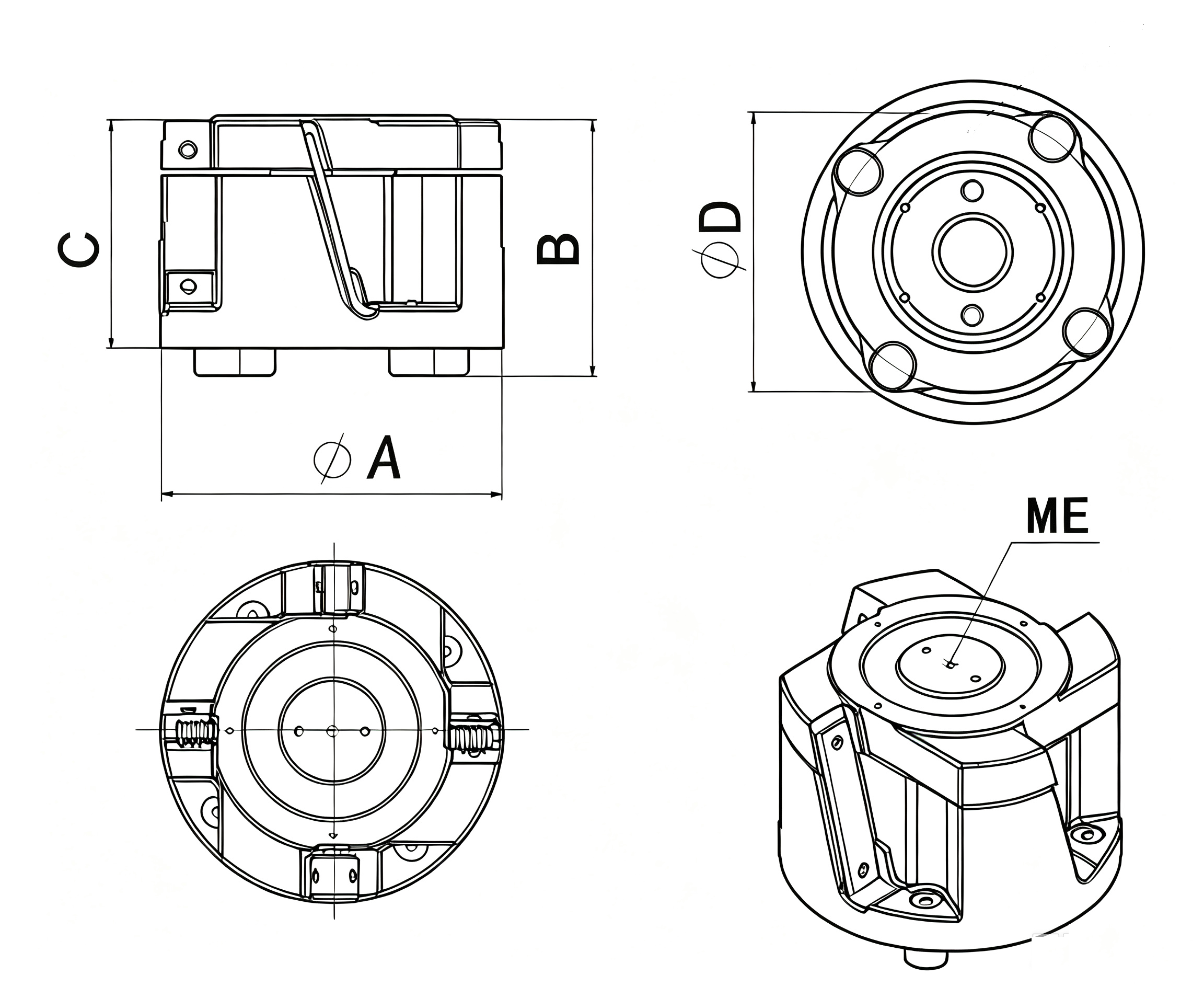

| Model | A(mm) | B(mm) | C(mm) | D(mm) | ME | Parts Max. Loading(kg) | Top Bowl Max. Mass(kg) |
| PF-01 | 50 | 85 | 115 | 92 | M8 | 0.35 | 1 |
| PF-02 | 60 | 100 | 130 | 94 | M8 | 0.5 | 1.5 |
| PF-03 | 65 | 120 | 150 | 95 | M8 | 0.8 | 2 |

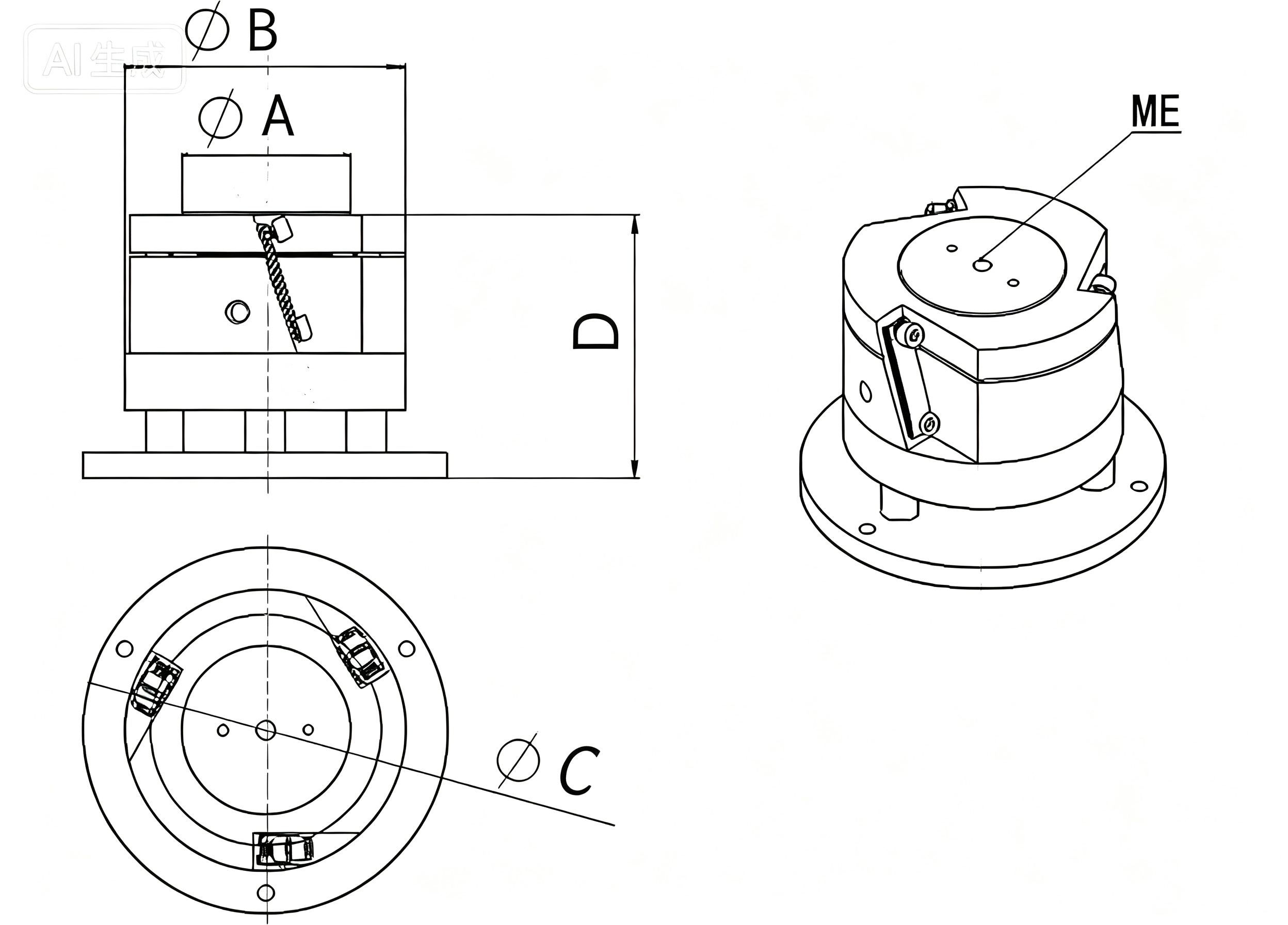

| Model | A(mm) | B(mm) | C(mm) | D(mm) | ME | Parts Max. Mass(kg) | Top Bowl Max. Mass(kg) |
| PF-04 | 150 | 127 | 113 | 117 | M8 | 1 | 5 |
| PF-05 | 210 | 158 | 139 | 172 | M10 | 2 | 8 |
| PF-06 | 299 | 222 | 203 | 246 | M12 | 5 | 12 |
