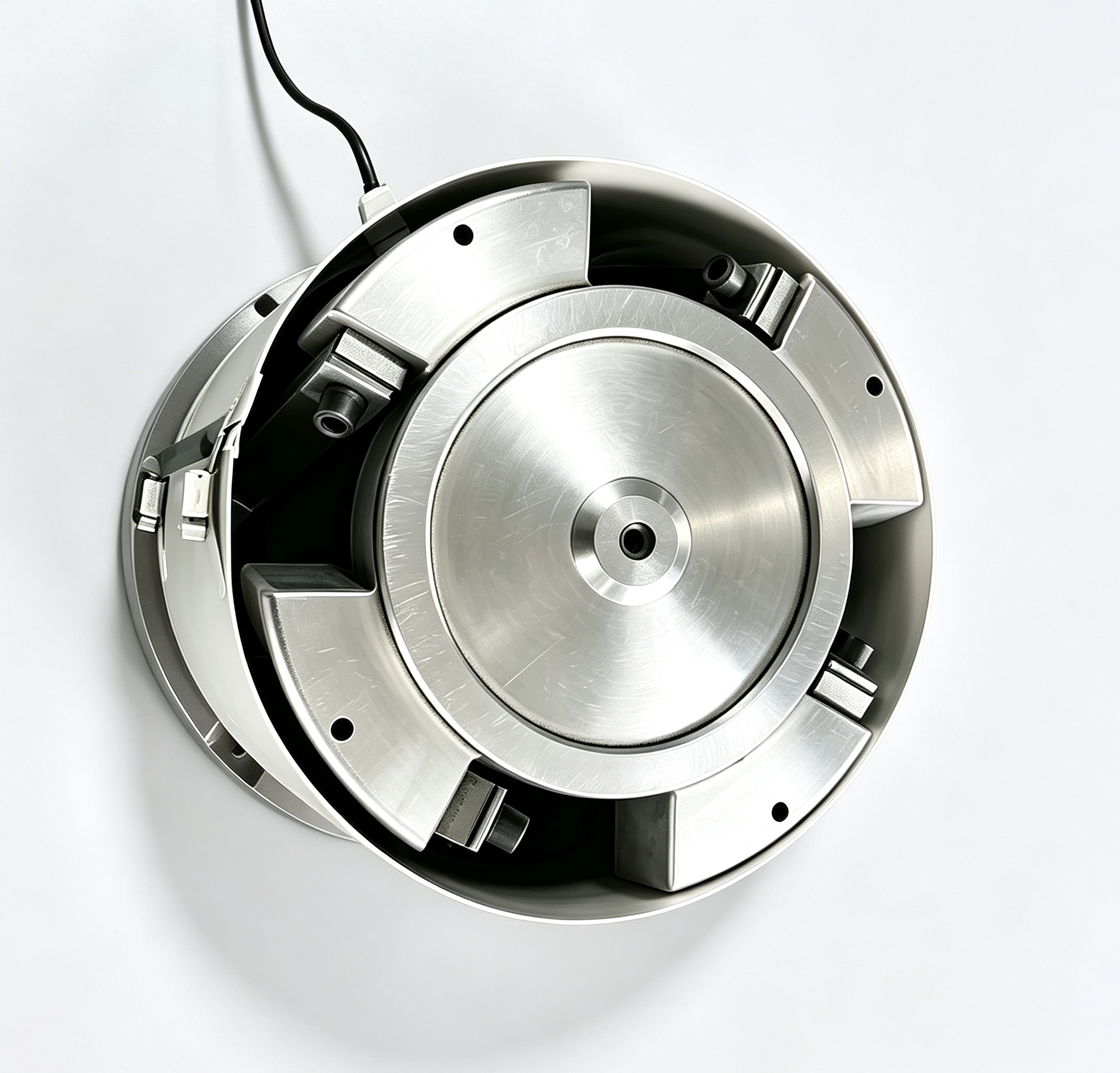

Electromagnetic Feeder Drive with Central Single Coil
Built to industrial standards, this electromagnetic drive adapts to evolving automation requirements and meets rising expectations for equipment design and performance.

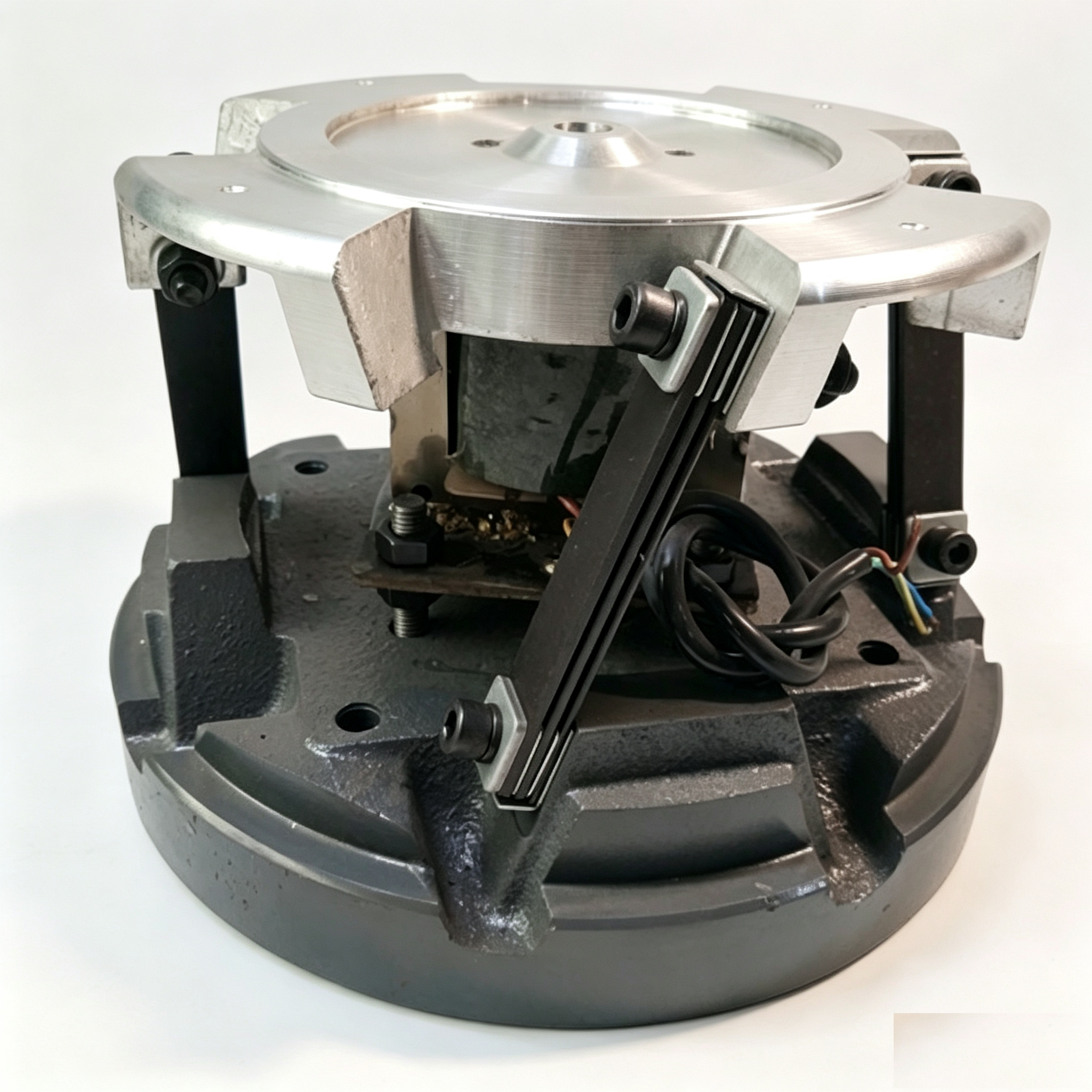

The electromagnetic drive adopts a center-mounted single-coil electromagnet layout, paired with a redesigned cross arm. It provides a simple yet reliable way to deliver consistent power across the full operating range. Three spring sets connect the base and cross arm to ensure stable feeding performance and simplified tuning. The round base features a practical, good-looking structure. When fitted with stainless steel or mild steel protective covers, this electromagnetic drive is ideal for industries requiring clean and neat equipment appearance.

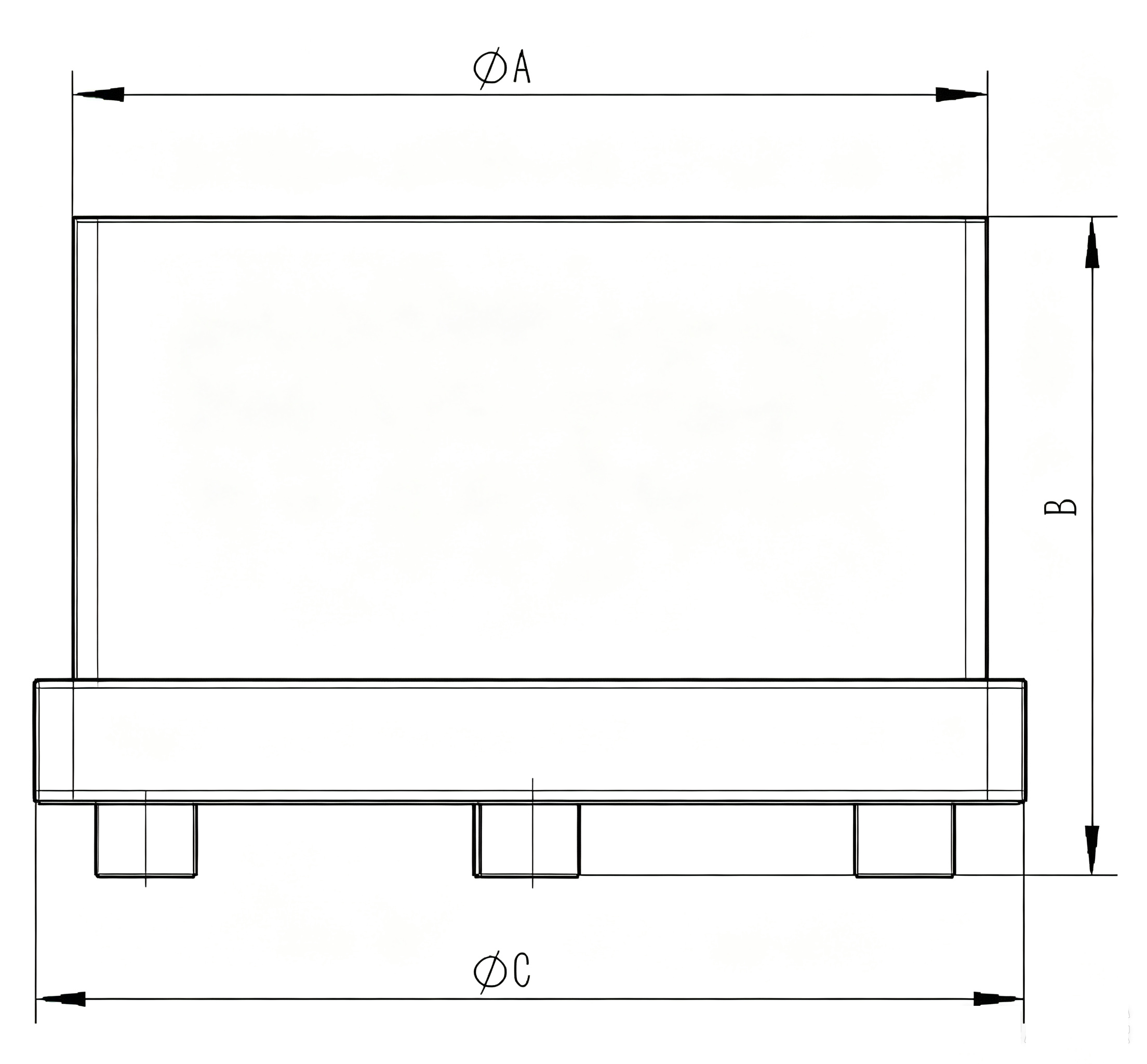

| Model | A | B | C | Parts Max. Loading(kg) | Top Bowl Max. Mass(kg) |
| BF-00 | 149 | 165 | 176 | 2 | 2 |
| BF-01 | 180 | 189 | 210 | 4 | 3 |
| BF-02 | 230 | 210 | 257 | 5 | 5 |
| BF-03 | 270 | 245 | 307 | 6 | 8 |
| BF-04 | 320 | 285 | 350 | 8 | 12 |
| BF-05 | 370 | 277 | 400 | 10 | 15 |

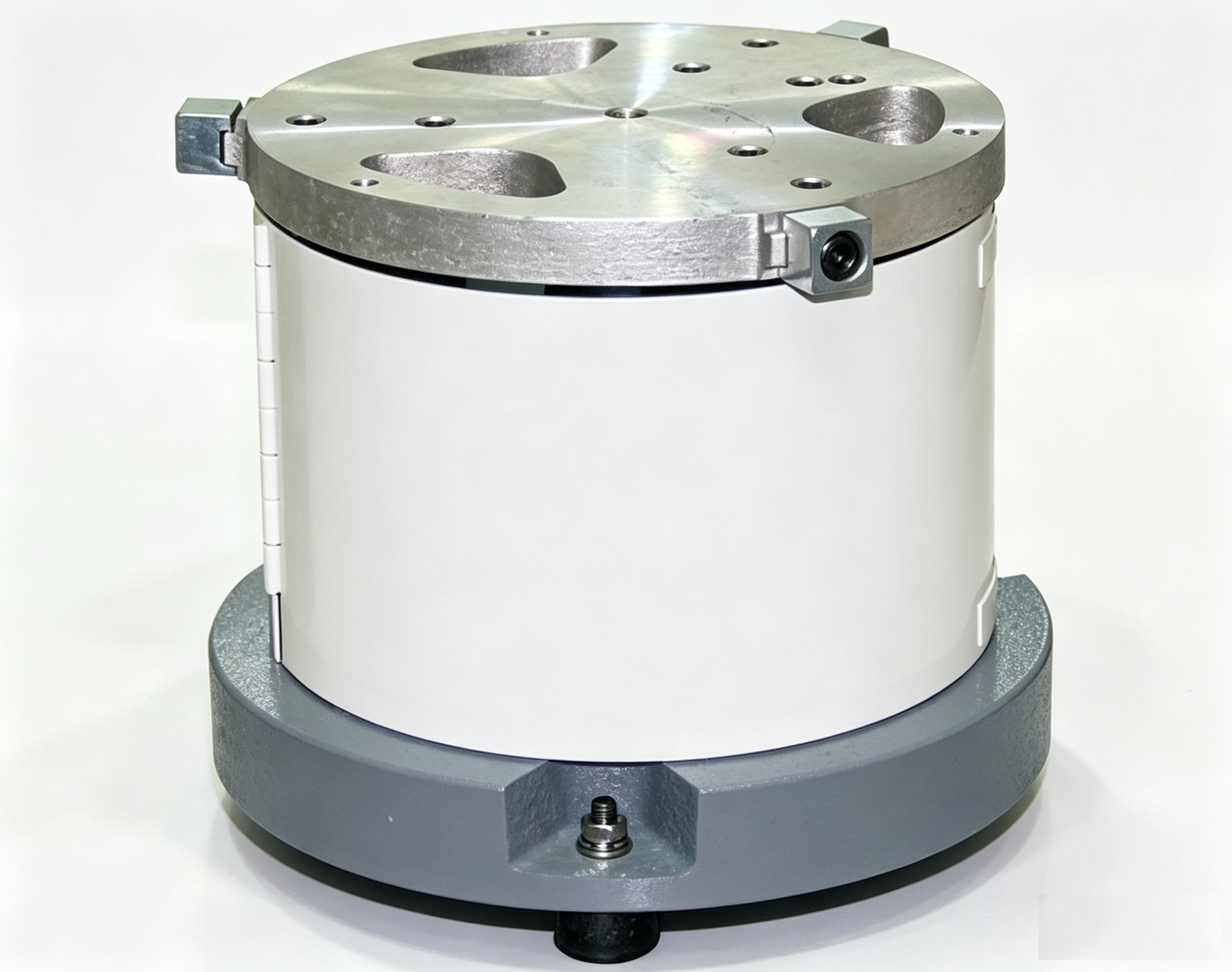

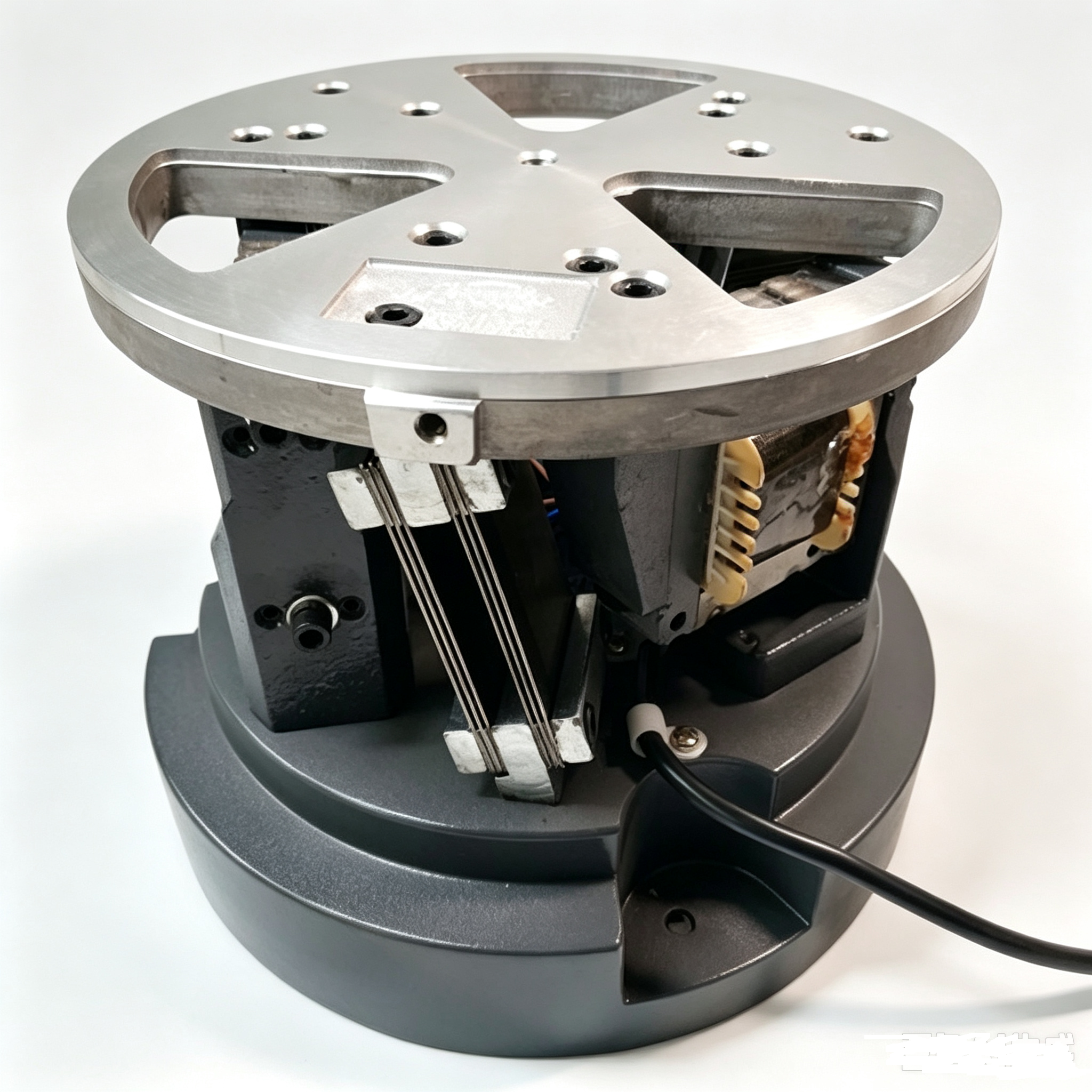

Electromagnetic Feeder drive with one/two/four coils around
| Model | A(mm) | B(mm) | C(mm) | Parts Max. Loading(kg) | Top Bowl Max. Mass(kg) |
| BFA-01 | 145 | 186 | 160 | 3 | 5 |
| BFA-01 | 239 | 242 | 267 | 7 | 8 |
| BFA-02 | 308 | 241 | 343 | 10 | 15 |
| BFA-03 | 395 | 296 | 442 | 15 | 25 |
| BFA-04 | 420 | 317 | 469 | 30 | 35 |
| BFA-05 | 508 | 367 | 548 | 40 | 40 |
