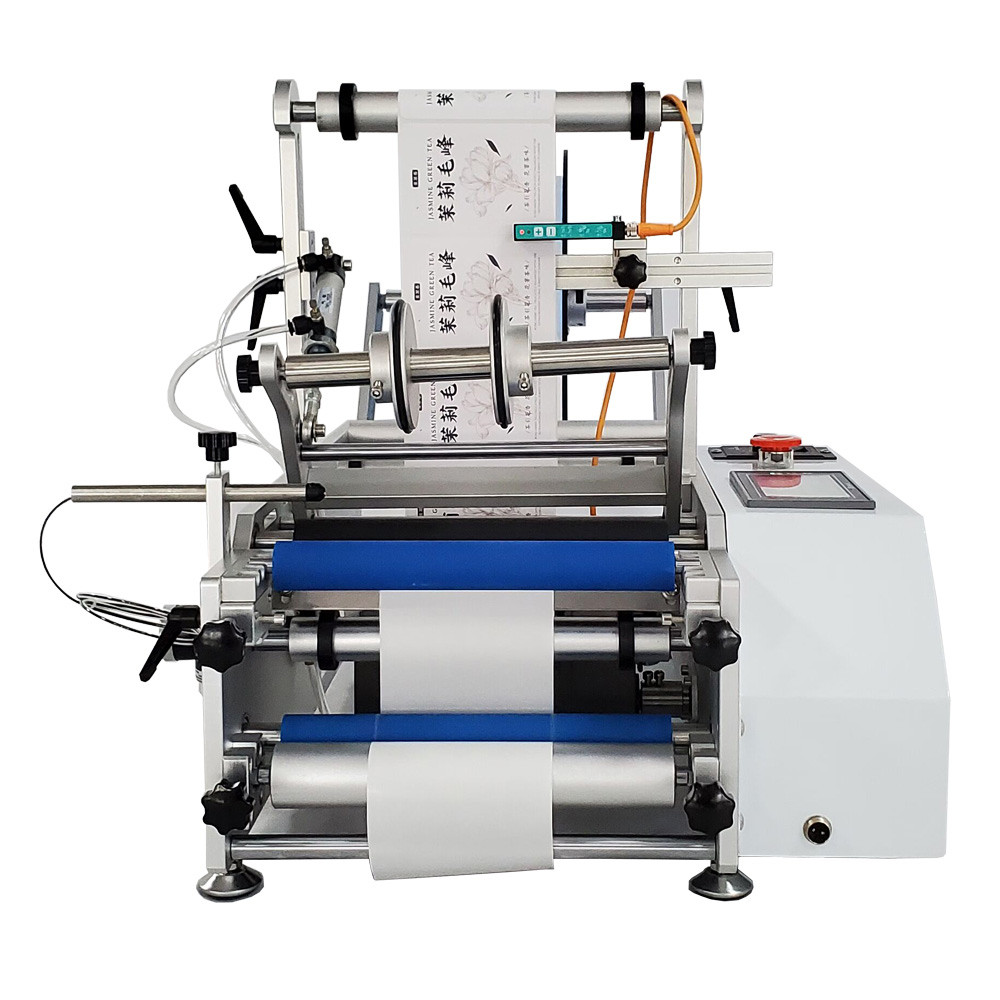

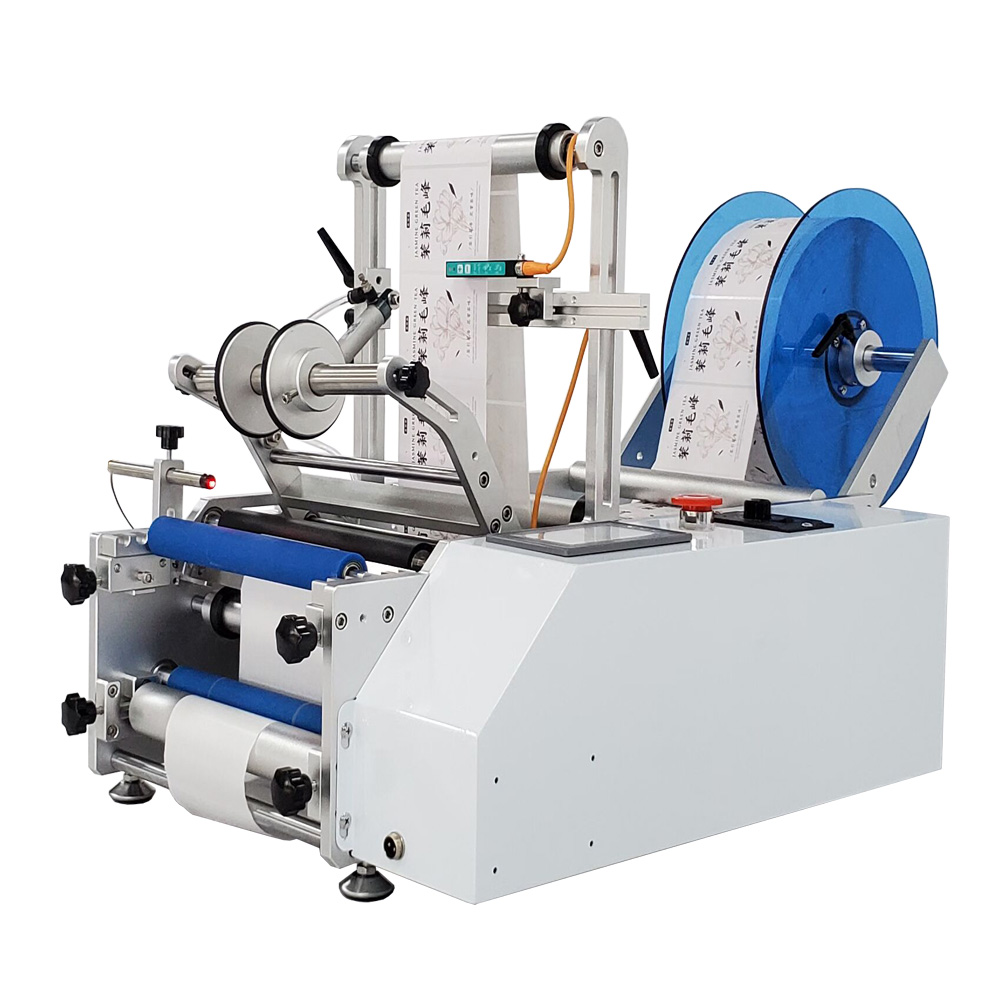

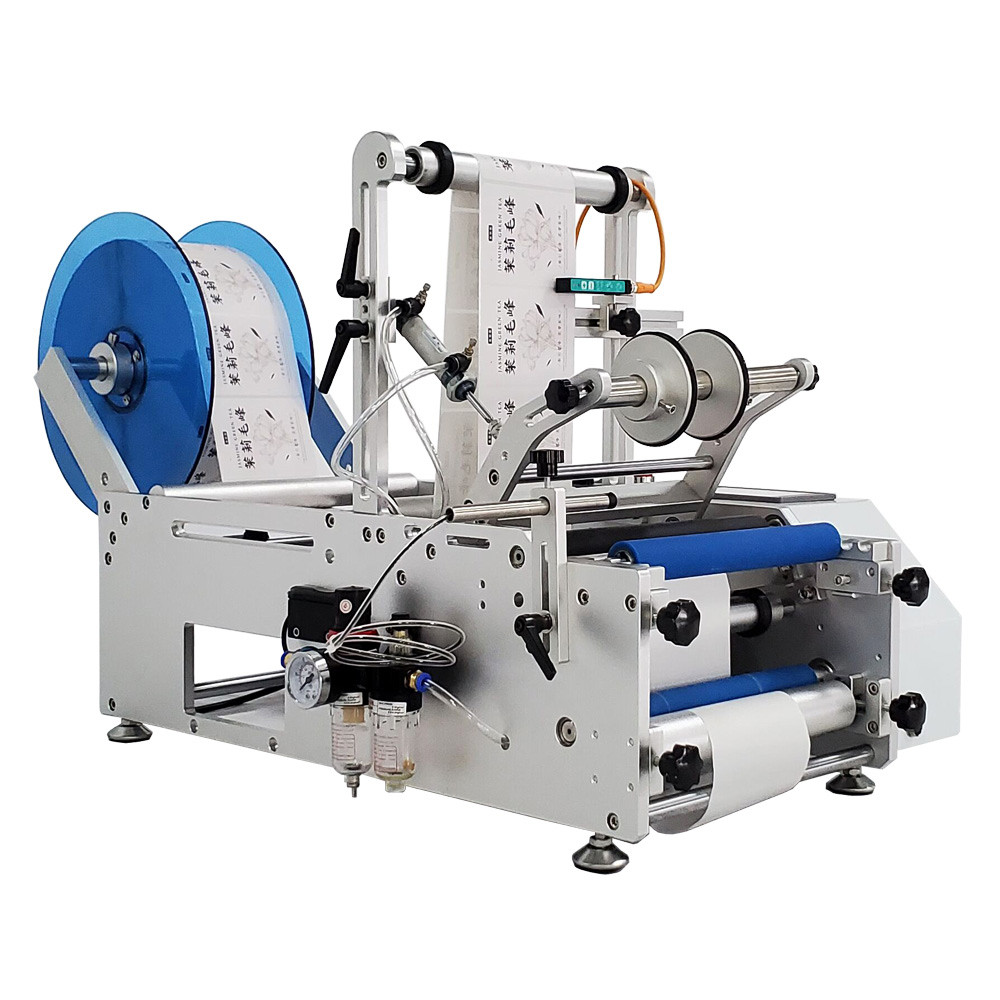

Semi Automatic Round Bottle Labeling Machine | Huilide Packaging Equipment
Our semi-automatic round bottle labeling machine works for cylindrical containers of different sizes and small-taper round bottles, such as cosmetic bottles and wine bottles. It supports full-wrap / half-wrap labeling, front & back labeling on round containers, and the gap between front and back labels can be freely adjusted.
Widely deployed in food, cosmetics, chemical, wine-making, pharmaceutical and other industries. An optional fixed-position detection module enables circumferential positioning labeling. You may also select a ribbon coding machine to print batch numbers, production dates and expiry information simultaneously. Labeling + coding in one pass to greatly boost production efficiency.
Key Features
✅ Fits various cylindrical products & small taper round bottles (cosmetic bottles, wine bottles etc.)
✅ Full-wrap, half-wrap and front-back labeling; adjustable spacing between front and rear labels
✅ Optional positioning detector for fixed-point circumferential labeling
✅ Optional ribbon coder to print batch, date & expiry during labeling
✅ One-step labeling & coding, improves production throughput
✅ Simple setup, easy size changeover for small & medium batches
Applications
Food, cosmetics, daily chemicals, wine, pharmaceutical packaging.
| 技术参数Technical parameters | 以下为标准机型技术参数,其他特殊功能和要求,可量身定做 Technical parameters below is standard model,special functions and requirements can be customized |
| 型号Model | SLM-01 |
| 贴标精度Labeling accuracy | +/-0.5mm(不含产品、标签误差) |
| 贴标速度Labeling speed | 15-30个/分钟(与产品尺寸有关) |
| 适用产品直径Product diameter | 10-150mm |
| 适用标签尺寸Applicable label size | 长度:20-300mm,底纸宽度:20-230mm |
| 整机尺寸Whole size | 约913x495x502mm(长x宽x高) |
| 整机重量Weight | 约34kg |
| 适用标签内径Applicable label roll inner dia. | 76mm |
| 适用标签外径Applicable label roll outer dia. | 280mm |
| 电源Power supply | 220V/110V/50Hz |
