Low Speed Bottle Unscrambler | Automatic Bottle Sorting & Orientating Machine
Product Overview

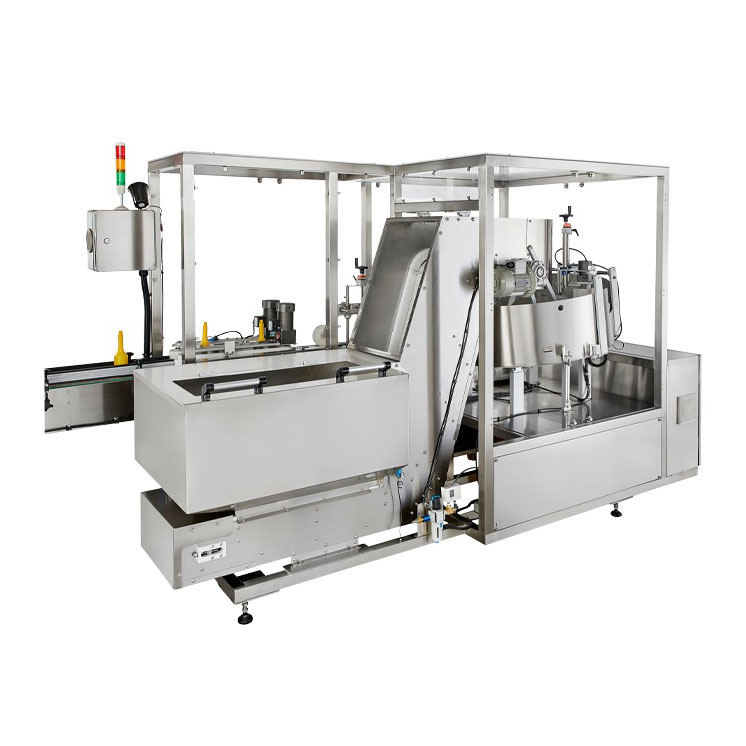

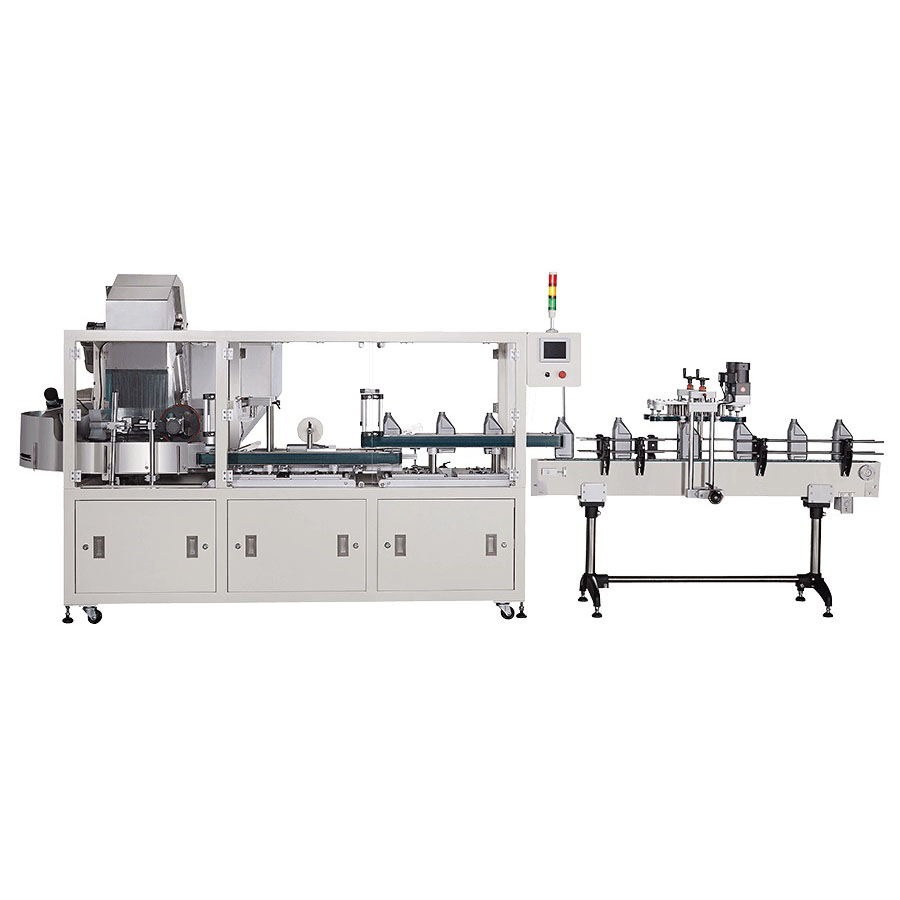

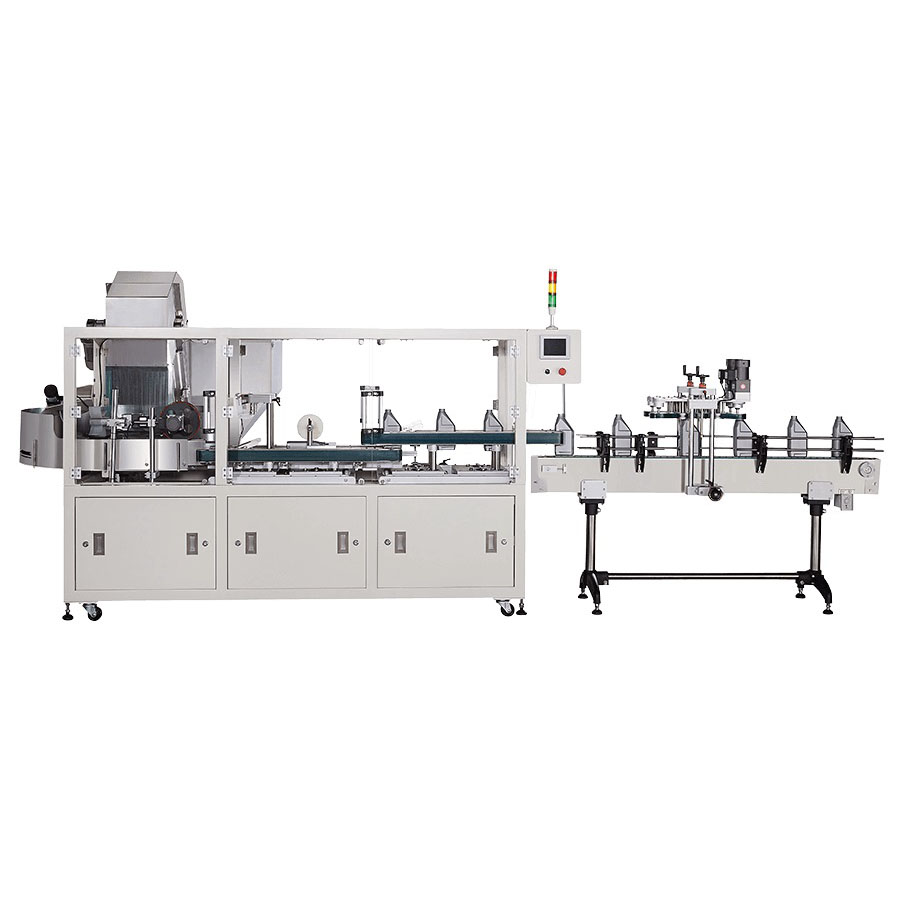

The low-speed bottle unscrambler is a practical and cost-effective automatic bottle orienting solution designed to continuously feed correctly positioned bottles to downstream filling, capping and labeling lines. Serving as an ideal labor-saving packaging equipment, it delivers stable, reliable performance with extremely simple operation and minimal maintenance requirements.
Engineered with strong versatility, this unscrambler accommodates a wide range of bottle shapes, sizes and materials. It is perfectly suited for small-to-medium production runs and low-speed packaging lines that prioritize operational stability and cost efficiency.
Key Features
-
Automatic Bottle Orientation: Consistently arranges and feeds bottles in correct position for streamlined inline production
-
Labor-Saving & Cost-Effective: Eliminates manual bottle sorting, greatly improving overall production efficiency
-
User-Friendly Operation: Extremely simple working logic with no complex settings, easy for operators to master
-
Low Maintenance Design: Stable mechanical structure reduces daily maintenance and downtime
-
Wide Compatibility: Supports diverse bottle geometries and dimensions for flexible production switching
-
Stable Low-Speed Operation: Ensures smooth bottle conveying without bottle jamming or damaging containers
| 技术参数Technical parameters | 以下为标准机型技术参数，其他特殊功能和要求，可量身定做 Technical parameters below is standard model,special functions and requirements can be customized |
| 型号Model | BU-01 |
| 速度Speed | 60-80瓶/分钟 |
| 瓶直径Bottle diameter | 50-130mm |
| 瓶高度Bottle height | 50-300mm |
| 整机尺寸Whole size | L. 2500 x W.3420 x H.2170mm |
| 电源Power supply | AC 220V/110V/50Hz |
| 气源 Gas | 0.5-0.8MPa |
